Description
Performance Features:

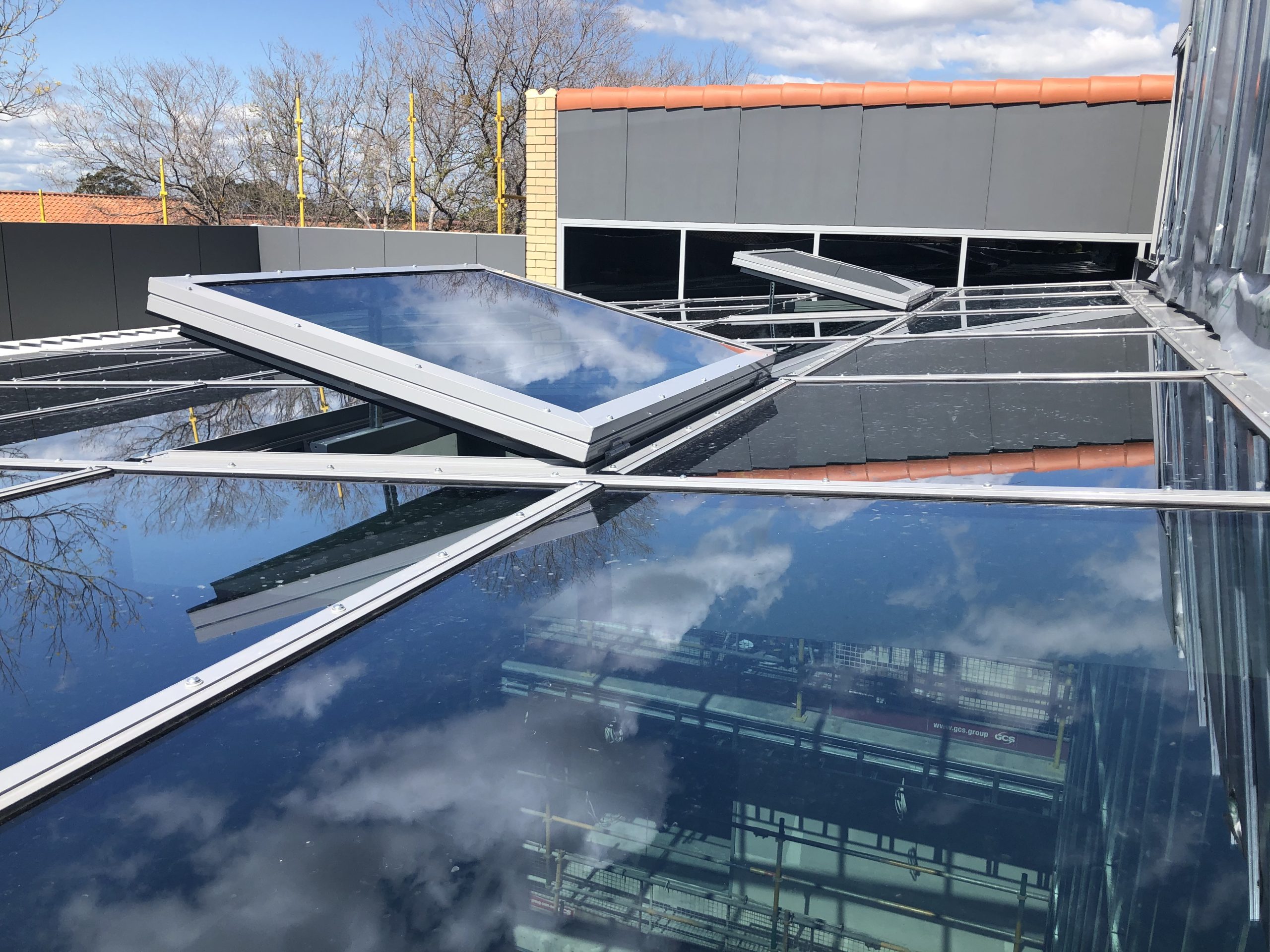

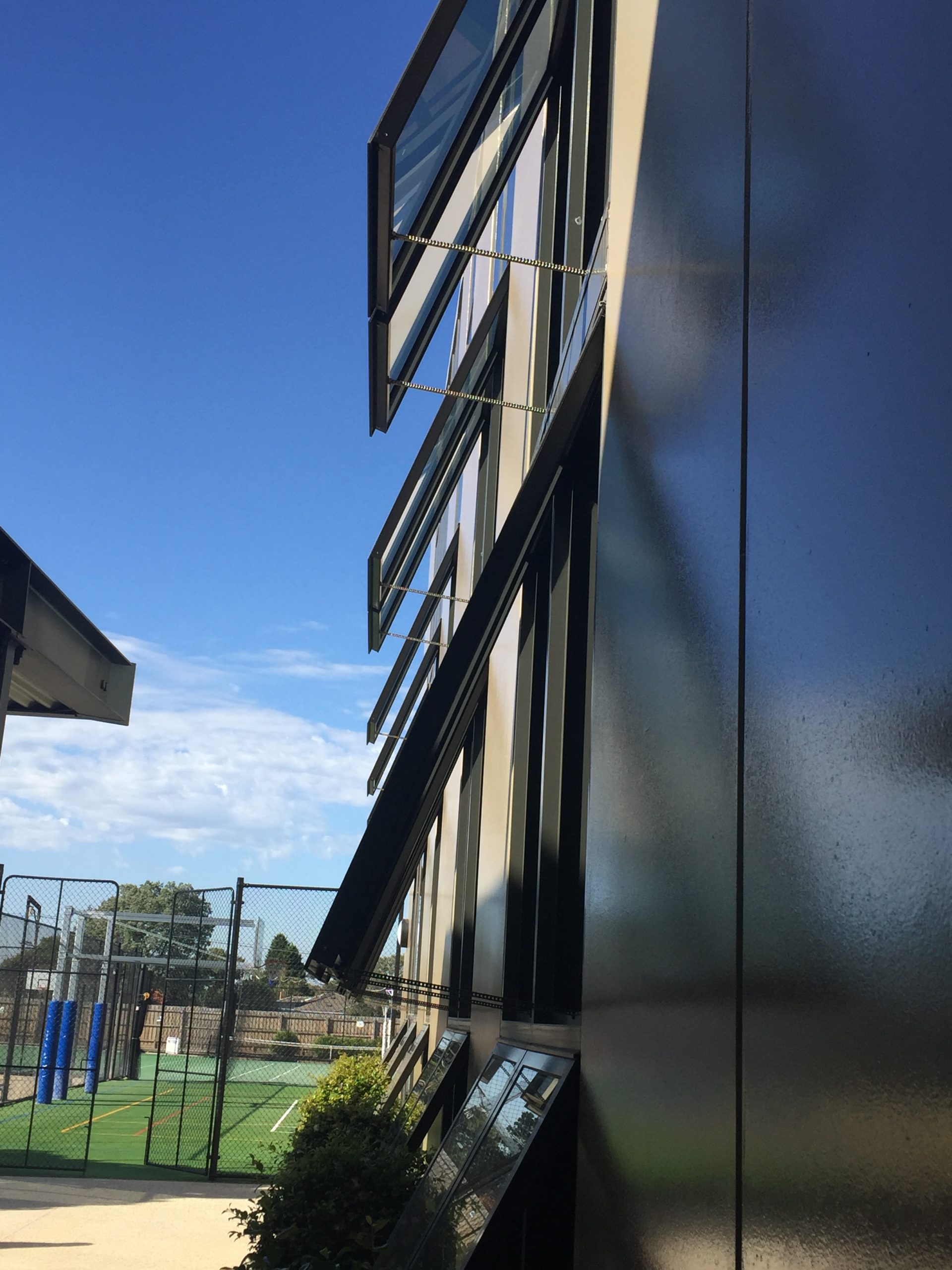

- For façade windows, roof windows, and ventilation flaps in conservatories.
- Automated drive unit for mounted installation on the window frame profile or sash profile.
- Drive is equipped with microprocessor-controlled motor and synchronous electronic (BSY+) for a precise synchronous running at a window element.
- Drive functions and performance features are individually programmable via the D+H software SCS.
- Special chain stabilisation
- Can be used for SHEV in accordance with EN 12101-2 and for daily ventilation.
- High-speed function (HS) for especially fast opening in case of fire (SHEV).
- Particularly quiet function in ventilation mode.
- Multi-stage anti-trap protection system regularly on board and adjustable via D+H software.
- Power supply and BSY+ signals can be looped through the drives.
- Integrated ACB (Advanced Communication Bus) bus interface with Modbus RTU protocol for direct integration into a building management system.
| Product Name / Model | Drive Type | Technical Specs (Power) | Force | Locking Force | Stroke |

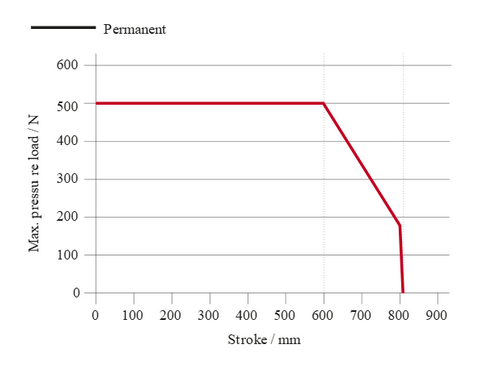

| KA-0500-1-ACB | Chain Drive | 24VDC / 1.4A | 500N | 2000N | 350/800mm |
