Products

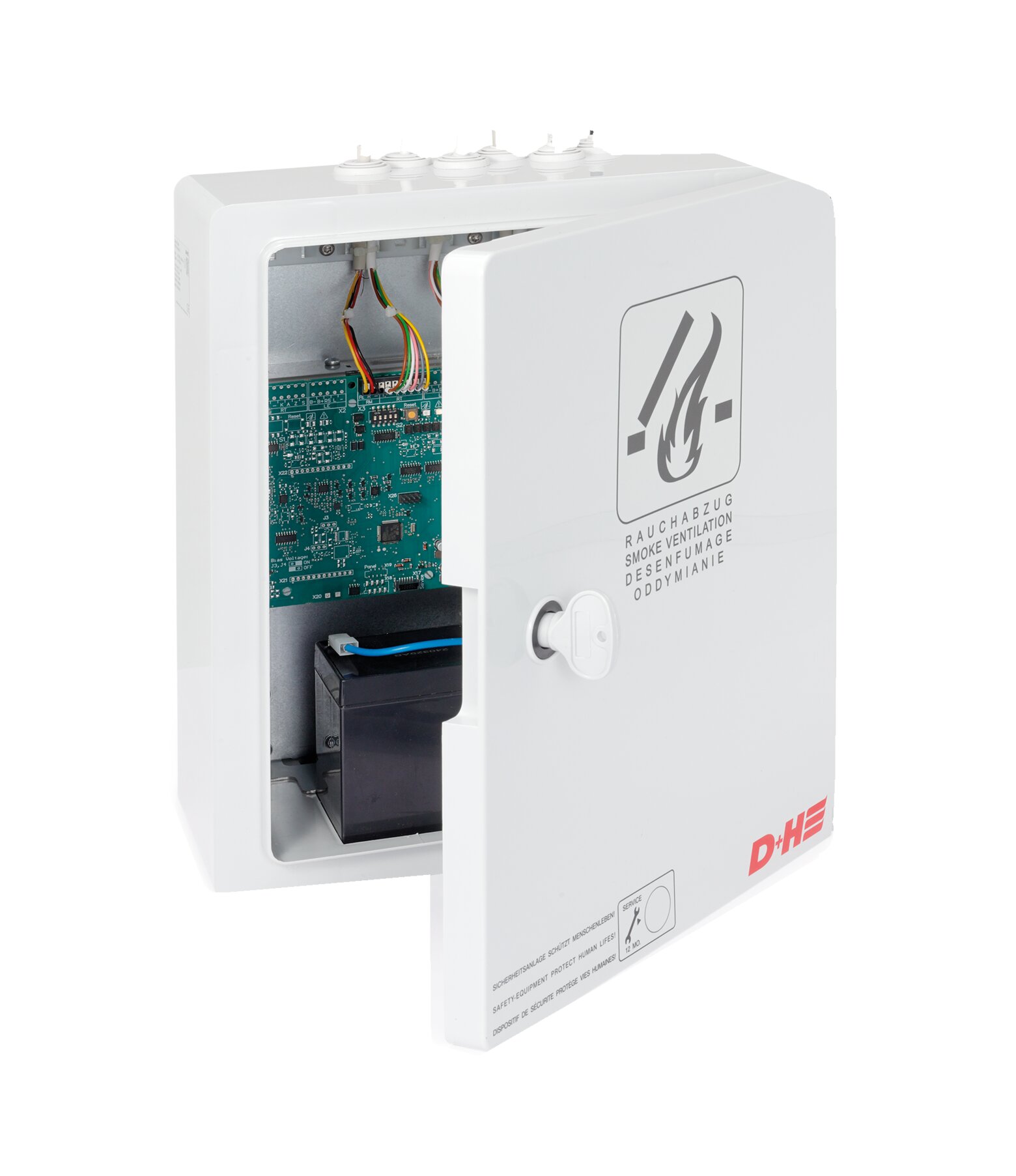

Compact battery-backed smoke and natural ventilation control panel for stairwells and single-zone systems requiring one ventilation group, one monitored fire line and up to 2.5 A total drive current.

• Ventilation type: Smoke and natural ventilation
• Total output: 24 V DC / 2.5 A
• Ventilation groups: 1
• Fire zones / lines: 1 monitored fire line
• Control inputs: Fire-alarm signal, wall switch, rain sensor, wind/rain sensor and low-level BMS interface
• Standby operation: Monitored battery-backed operation with a minimum 72-hour standby period
• Housing: Integrated white plastic enclosure

High-current smoke and natural ventilation control panel providing 20 A actuator capacity, two monitored fire lines, two ventilation groups and monitored battery-backed operation.

• Ventilation type: Smoke and natural ventilation
• Total output: 24 V DC / 20 A
• Configuration: 2 monitored fire lines / 2 ventilation groups
• Available versions: Main/Sub network version or standalone B version
• Control inputs: Fire-alarm signals, wall switches, weather sensors, low-level BMS interfaces and compatible external controls
• Standby operation: Monitored battery-backed operation with a minimum 72-hour standby period
• Housing: Integrated light-grey IP54 plastic enclosure
