CDM-1000-0600-1-ACB Chain Drive (24V)

Performance Features:

• The CDM Drive is the heavy duty specialist in the D+H range. Engineered for extremely heavy double or triple glazed roof lights or oversized façade windows.

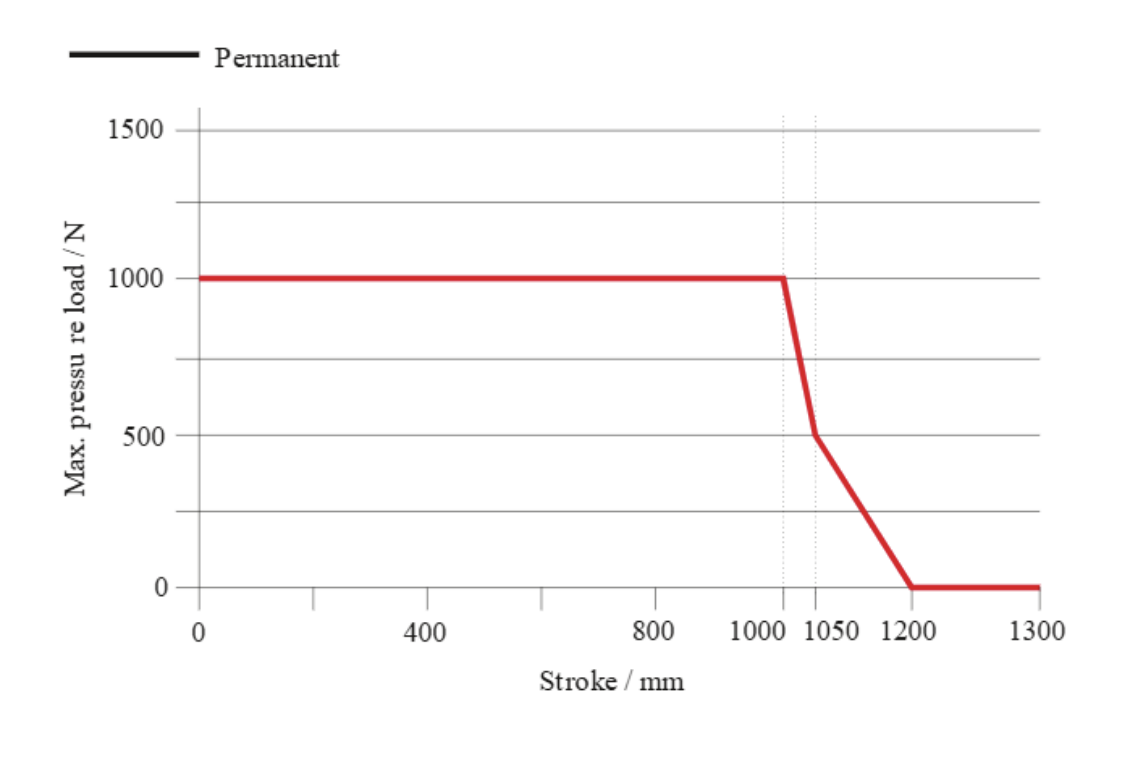

• Engineered for the heavy applications, delivering a high push/pull force of 1000N and a nominal locking force of 3500N common in commercial designs.
• Triple deflection of the chain allows the drive body to remain significantly shorter and more compact making it ideal for tight roof voids.
• Specialised mounting brackets, for compatibility with heavy duty joinery suites.
• Intelligent synchronization with BSY+ motor electronics, allows up to 4 drives to work in tandem on a single large or heavy window frame.
• Programable chain stroke lengths, extensive stroke lengths up to 600mm, providing large aerodynamic free area for ventilation.
• Anti-pinch protection prevents injury or damage if an object is detected in the window’s closing path, crucial for school and public sector projects.
• Smart building integration with ACB (Advanced Communication Bus) allows the window automation to “talk” directly to the building management system for centralised control.
• CDM actuators are tested to EN 12101-2 standards, which are recognised under New Zealand building solutions for natural smoke and heat exhaust.
• In fire applications, the drives feature a “High Speed” mode to reach the full opening stroke in under 60 seconds, rapidly clearing toxic gases.
• W x H x D: 608 x 53 x 90mm
