KA-0300-1-ACB Chain Drive (24v)

Performance Features:

• KA drive is engineered for high-performance applications, offering greater push/pull forces and extreme durability for heavier New Zealand window and roof light systems.

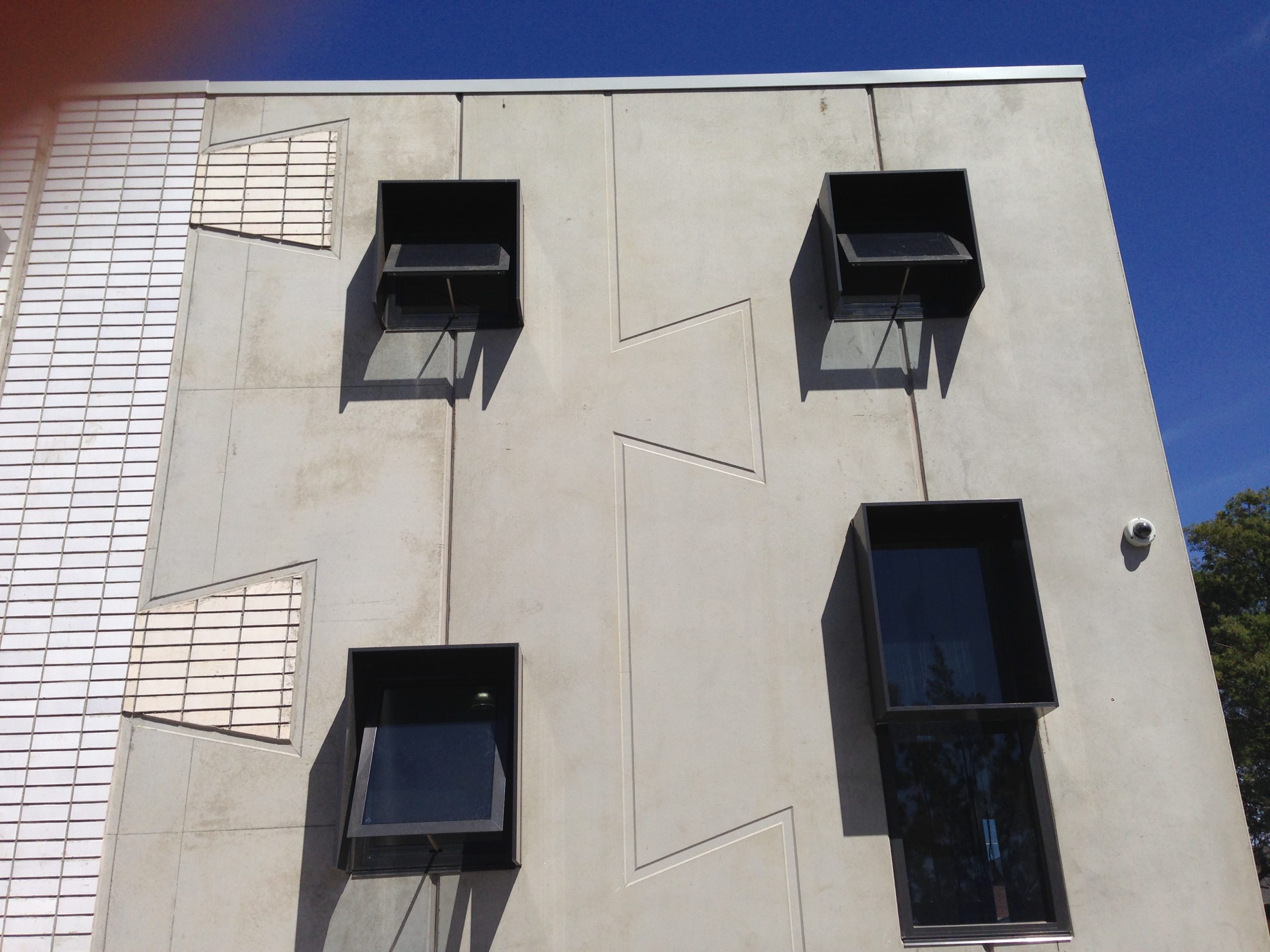

• Compatible with awning, casement, and hopper windows, specialised skylights and operable roofs common in residential and commercial designs.
• Universal mounting brackets, for compatibility with commonly used New Zealand joinery suites including face fix or sill mounted applications, providing solutions for both retrofit and new build projects.
• Intelligent synchronisation with BSY+ motor electronics, allows up to 8 drives to work in tandem on a single large or heavy window frame.
• Programable chain stroke lengths, allowing installers to limit openings for safety (e.g., falling from height applications) or maximize openings for airflow.
• Anti-pinch protection prevents injury or damage if an object is detected in the window’s closing path, crucial for school and public sector projects.
• Smart building integration with ACB (Advanced Communication Bus) allows the window automation to “talk” directly to the building management system for centralised control.
• KA actuators are tested to EN 12101-2 standards, which are recognised under New Zealand building solutions for natural smoke and heat exhaust.
• In fire applications, the drives feature a “High Speed” mode to reach the full opening stroke in under 60 seconds, rapidly clearing toxic gases.
• W x H x D: 421-902mm x 40 x 51mm
