KA-34-K Chain Drive (230V)

Performance Features:

• The KA 34-K operates directly on 230VAC, eliminating the need for external 24V DC power supplies or control panels.
• Reducing overall project costs by utilizing standard electrical cabling, making it a highly competitive solution for New Zealand Commercial projects and retail fit outs.
• KA drive is engineered for high-performance applications, offering greater push/pull forces and extreme durability for heavier New Zealand window and roof light systems.

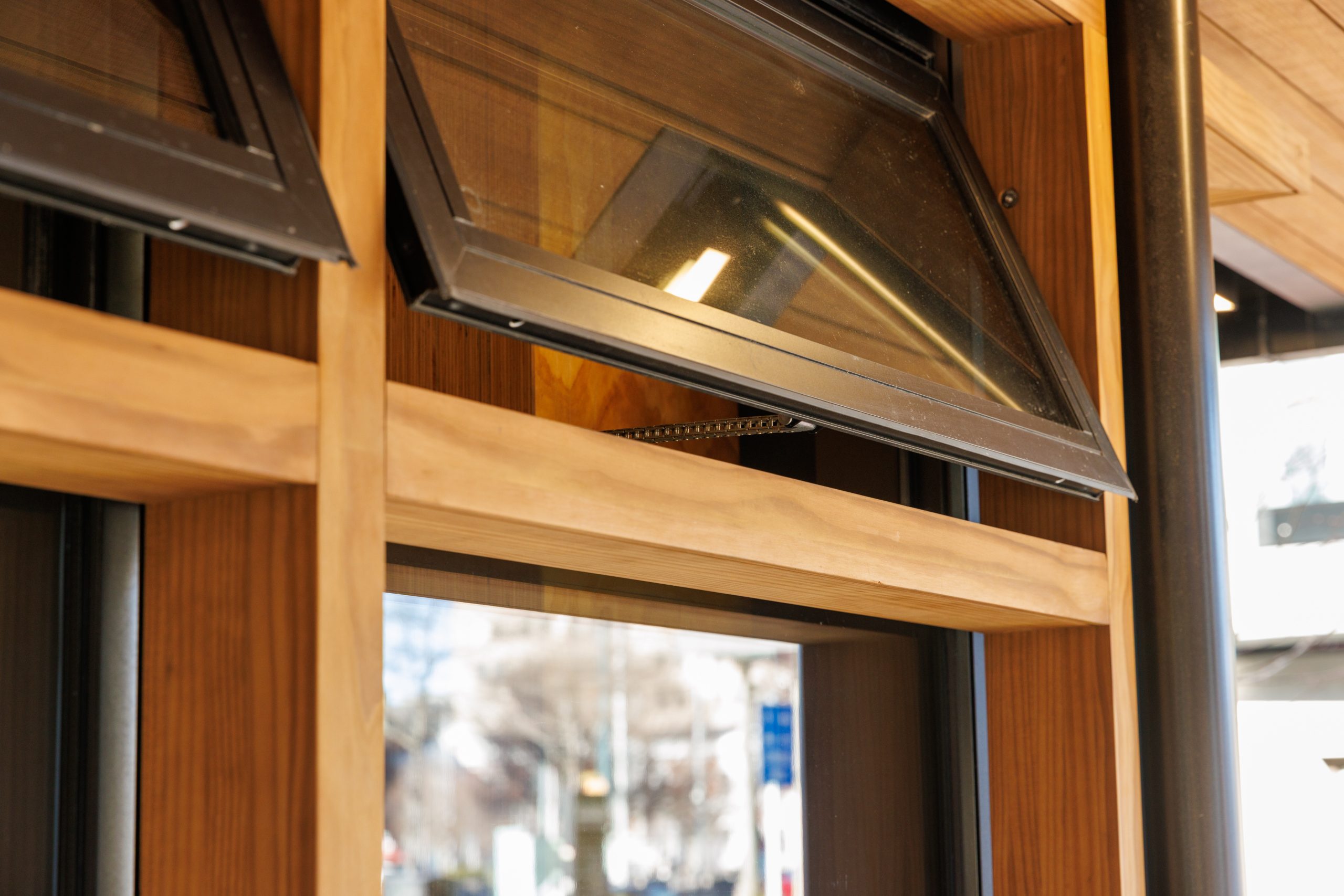

• Compatible with awning, casement, and hopper windows, specialised skylights and operable roofs common in commercial designs.
• Universal mounting brackets, for compatibility with commonly used New Zealand joinery suites including face fix or sill mounted applications, providing solutions for both retrofit and new build projects.
• Intelligent synchronisation with BSY+ motor electronics, allows up to 2 drives to work in tandem on a single large or heavy window frame.
• Programable chain stroke lengths, allowing installers to limit openings for safety (e.g., falling from height applications) or maximize openings for airflow.
• Anti-pinch protection prevents injury or damage if an object is detected in the window’s closing path, crucial for school and public sector projects.
• KA actuators are tested to EN 12101-2 standards, which are recognised under New Zealand building solutions for natural smoke and heat exhaust.
• W x H x D: 560-1041mm x 40 x 51mm
