Description
Performance Features:
- The VCD-K operates directly on 230VAC , eliminating the need for external 24V DC power supplies or control panels. This is ideal for standalone residential and commercial office retrofits.
- Reducing overall project costs by utilizing standard electrical cabling, making it a highly competitive solutions for New Zealand education school projects and retail fit outs.

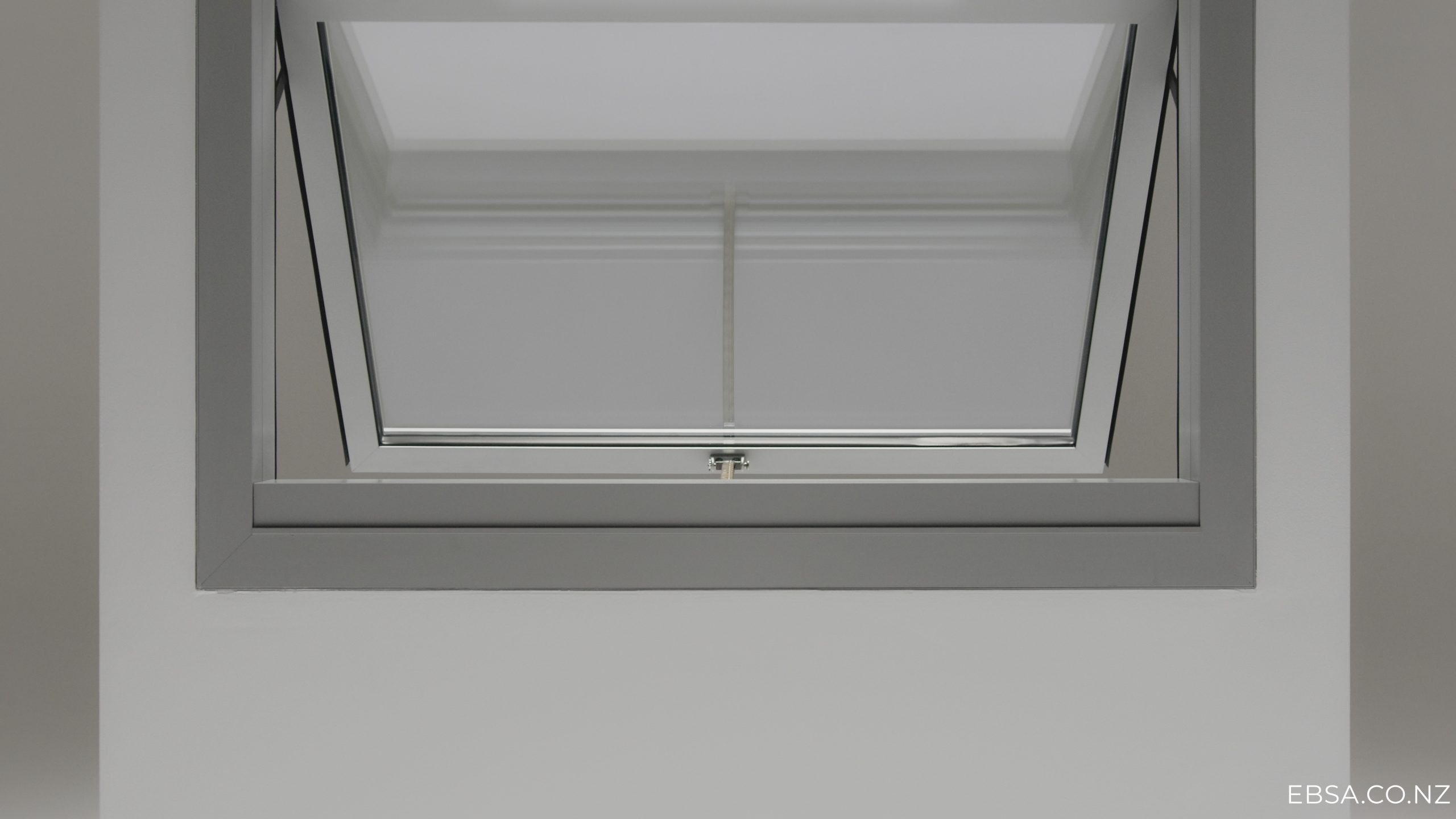

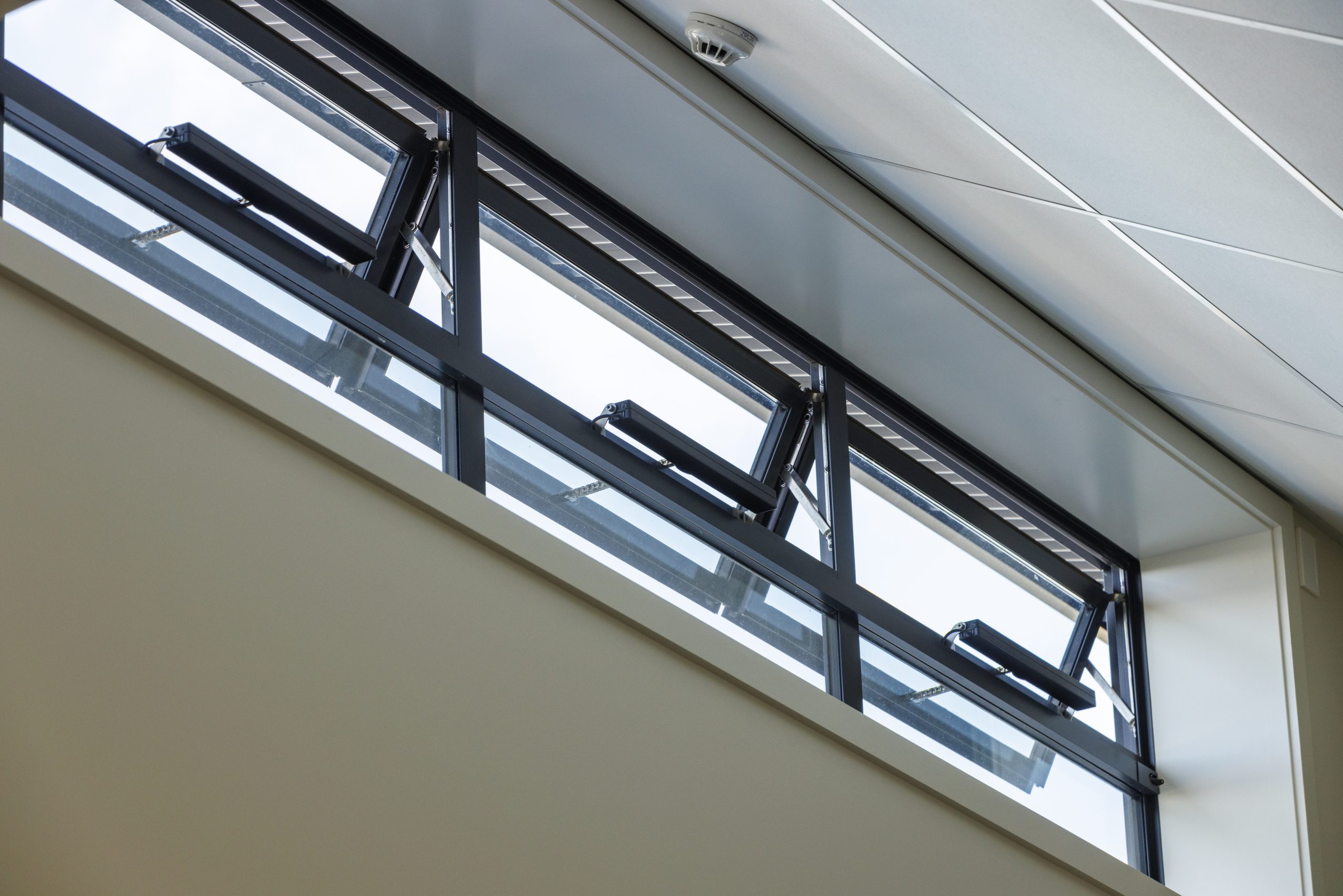

- Compatible with awning, casement, and hopper windows, the specialist in residential and commercial buildings.
- Universal mounting brackets, for compatibility with commonly used New Zealand joinery suites including face fix or sill mounted applications, providing solutions for both retrofit and new build projects.
- Programable chain stroke lengths, allowing installers to limit openings for safety (e.g., falling from height applications) or maximize openings for airflow.
- Tandem safety function TMS+ for operating 2 drives on a single large or heavy window frame.
- Smart Integration: Despite being mains powered, it remains “smart building ready” for integration into timers, CO2 sensors, or building management systems.
- 480mm x 30mm x 47mm
| Product Name / Model | Drive Type | Technical Specs (Power) | Force | Locking Force | Stroke |
| VCD-204-K | Chain Drive | 230VAC | 200N | 2000N | 350mm |
