Compact natural ventilation control panel
The D+H GVL 8301-K V2 is a compact natural ventilation control panel for operating one group of compatible 24 V DC window drives.
It is suited to small automated window, louvre and roof-opening systems requiring local wall-switch operation and optional rain-sensor control within an enclosed and accessible panel.
The GVL 8301-K V2 combines the power supply and natural ventilation control functions within a compact polypropylene enclosure.
Typical applications
- Small automated window systems
- Single-group natural ventilation
- High-level windows and louvres
- Local wall-switch operation
- Systems requiring optional rain-sensor closing
- Projects requiring an enclosed controller rather than a concealed module
Key features
- 24 V DC output
- 1 A total drive current
- One natural ventilation group
- Local open and close wall-switch input
- Optional rain-sensor input
- Compact polypropylene housing
- Natural ventilation operation only
Technical information
| Product type | Enclosed natural ventilation control panel |
|---|---|
| Application | Natural ventilation and general automated window operation |
| Panel output | 24 V DC / 1 A total current |
| Ventilation groups | 1 |
| Fire zones or lines | Not applicable — natural ventilation only |
| Control inputs | Wall switch and optional rain sensor |
| Housing | Polypropylene |
| Dimensions | 180 × 130 × 77 mm |
| Manufacturer | D+H Mechatronic |
Wall-switch and rain-sensor control
The GVL 8301-K V2 accepts a compatible open and close ventilation switch for normal operation.
An optional rain sensor can be connected so that the controller commands the connected windows, louvres or roof openings to close when rain is detected, provided mains power remains available.
The required switches, sensors and field cabling should be confirmed before installation.
Drive capacity and compatibility
The total connected drive load must remain within the panel’s 1 A output capacity.
Selection should account for:
- the selected drive models;
- the rated and starting current of each drive;
- the number of connected drives;
- cable length and voltage drop;
- the required opening sequence; and
- the number of independently controlled groups.
The GVL 8301-K V2 is suited to one operating group. Where several groups or increased drive capacity are required, the GVL 8304-K or GVL 8408-M may be more appropriate.

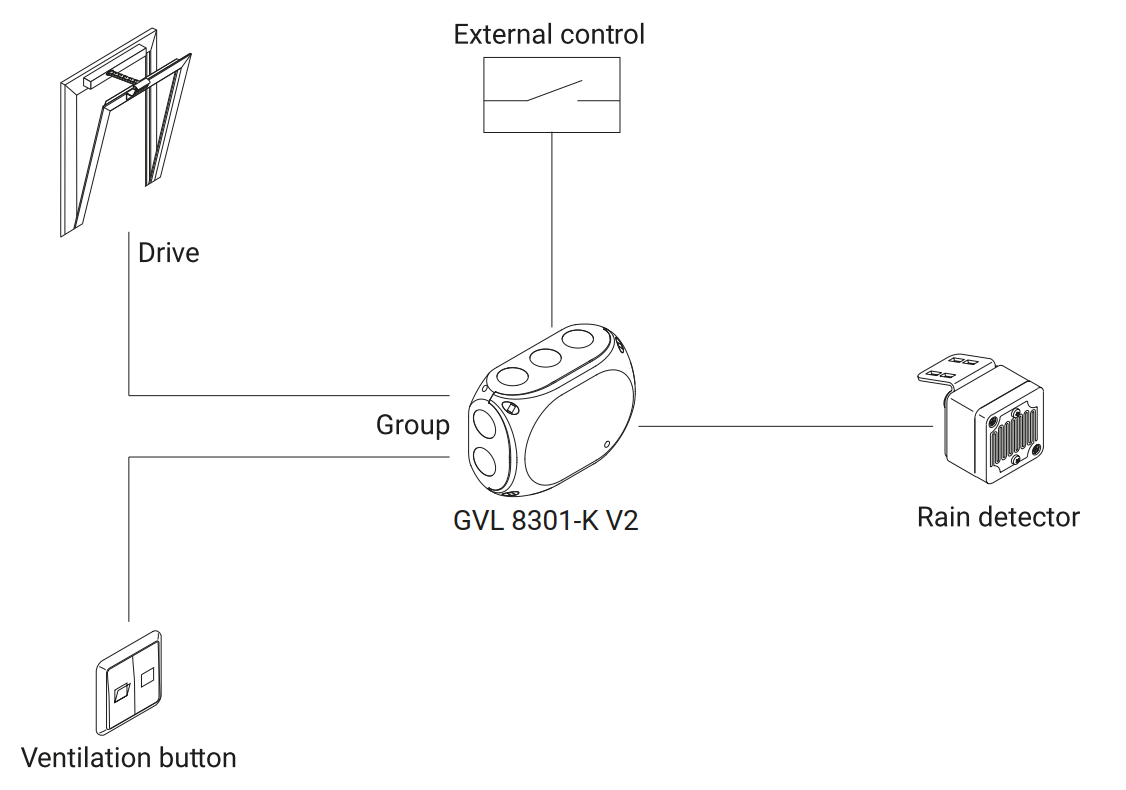

Typical system arrangement
Normal ventilation:
Wall switch → GVL 8301-K V2 → windows open or close
Weather protection:
Rain sensor → GVL 8301-K V2 → windows close while mains power remains available
Mains power failure
The GVL 8301-K V2 does not include standby batteries.
If the connected windows, louvres or roof openings are open when the 230 V AC mains supply fails, they will remain in their existing position because the controller no longer has power to operate the drives.
A connected rain sensor also cannot close the openings while the controller has no operating power.
Where automatic close on loss of mains power is required, use a battery-backed D+H RZN or CPS-M control panel.
Natural ventilation only
The GVL 8301-K V2 is intended for normal natural ventilation and automated window operation.
It must not be used as a substitute for a smoke and natural ventilation control panel where openings must respond to a fire alarm, perform a smoke-control function or remain available from standby batteries during a mains failure.
Installation and coordination
The control panel should be installed in an accessible location suitable for electrical connection, testing and future maintenance.
The project team should confirm:
- panel location;
- 230 V AC supply;
- drive and field-device cabling;
- wall-switch location;
- rain-sensor location and wiring;
- connected drive load;
- voltage drop;
- termination responsibilities; and
- commissioning requirements.
Information for builders and electrical contractors
- Allow for the required mains supply to the control panel.
- Allow cabling between the panel, wall switch, rain sensor and connected drives.
- Confirm the final panel location before field cabling is completed.
- Provide access to the panel for testing and future maintenance.
- Confirm termination and commissioning responsibilities before installation.
Information for aluminium joiners
- Confirm drive compatibility before window fabrication.
- Allow suitable fixing points for the selected drives and brackets.
- Provide concealed cable pathways within the framing where practical.
- Confirm the required drive colour and cable-tail length.
- Coordinate window hardware, opening geometry and actuator requirements with EBSA.
Compare natural ventilation control options
The GVL 8301-K V2 is one of several natural ventilation control options available from EBSA.
Compare the GVL 8301-K V2 with the PS-VFM1, PS-VE power supplies, GVL 8304-K and GVL 8408-M
EBSA technical support
EBSA can assist with actuator selection, connected-load calculations, wall switches, weather sensors, field cabling, installation coordination and commissioning requirements.
