RZN 4416-M Smoke and Natural Ventilation Control Panel

High-capacity RZN smoke and natural ventilation control panel

The D+H RZN 4416-M is a battery-backed 24 V DC smoke and natural ventilation control panel for larger automated window, louvre and roof-opening systems.

It provides 16 A total drive current, three ventilation groups and two monitored fire lines within an integrated sheet-steel enclosure. This makes it the highest-capacity standard RZN panel in the current EBSA range.

During normal building operation, the panel can provide day-to-day natural ventilation using wall switches, weather sensors, temperature controls, low-level BMS interfaces or other compatible inputs. When a fire signal is received, fire-mode operation takes priority and the connected openings move according to the agreed cause-and-effect sequence.

Typical applications

• Larger smoke ventilation systems
• Automated windows, louvres and roof openings
• Systems requiring up to 16 A total drive current
• Systems requiring three ventilation groups
• Systems requiring two monitored fire lines
• Combined smoke control and day-to-day natural ventilation
• Natural ventilation systems requiring battery-backed close on loss of mains power
• Applications requiring several independently controlled window groups
• Local wall-switch operation with wind and rain protection
• Fire-alarm and low-level BMS interfaces

Key features

• 24 V DC stabilised output
• 16 A total drive current
• Three ventilation groups
• Two monitored fire lines
• Integrated IP54 sheet-steel enclosure
• Monitored standby battery operation
• Minimum 72-hour battery backup
• Fire-alarm and manual smoke-control inputs
• Integrated natural ventilation functions
• Direct rain detector or wind/rain sensor connection
• Low-level BMS interface capability
• Automatic close on loss of mains power where configured
• AdComNet connectivity available using a compatible D+H interface module
• One slot for an additional compatible module

Technical information

Smoke-control certification and safety functions

The RZN 4416-M is tested and certified as smoke-control power-supply equipment to ISO 21927-9 and EN 12101-10.

The panel supports configurable smoke-control functions including monitored fire operation, fault handling, fire-mode retriggering and integration with compatible fire-alarm and building-management systems.

The two-line arrangement can also support coordinated operation across separate smoke-control areas, such as two stairwells, where this matches the approved project design.

Fire-mode operation

The RZN 4416-M can receive fire-alarm or compatible manual smoke-control inputs through its two monitored fire lines.

When a fire signal is received, the panel gives priority to the programmed fire-mode operation and commands the nominated windows, louvres or roof openings to move to their required smoke-control position.

The two fire lines allow separate fire inputs or fire zones to be coordinated with the three ventilation groups where this suits the project fire strategy and cause-and-effect sequence.

The final fire-mode operation is established through the project fire strategy and coordinated with the relevant fire, mechanical, electrical and façade requirements.

Natural ventilation operation

The panel can provide normal day-to-day ventilation through three independently controlled ventilation groups.

Compatible control inputs can include:

• open and close wall switches;
• rain detectors;
• wind/rain sensors;
• temperature controls;
• low-level BMS interfaces; and
• other approved external control signals.

The three-group arrangement allows different floors, rooms, façades or opening types to be operated independently while using one control panel.

Fire-mode commands retain priority over normal ventilation controls.

Standby batteries and mains power failure

The RZN 4416-M uses monitored standby batteries to maintain the control system when the normal 230 V AC mains supply fails.

Where automatic close on loss of mains power is required, the panel remains powered from its standby batteries and commands the connected openings to close.

The panel remains available during the standby period to respond to a subsequent fire signal and operate the nominated openings to their required smoke-control position.

The battery capacity is selected for the connected actuator load, required standby period, operating sequence and project requirements.

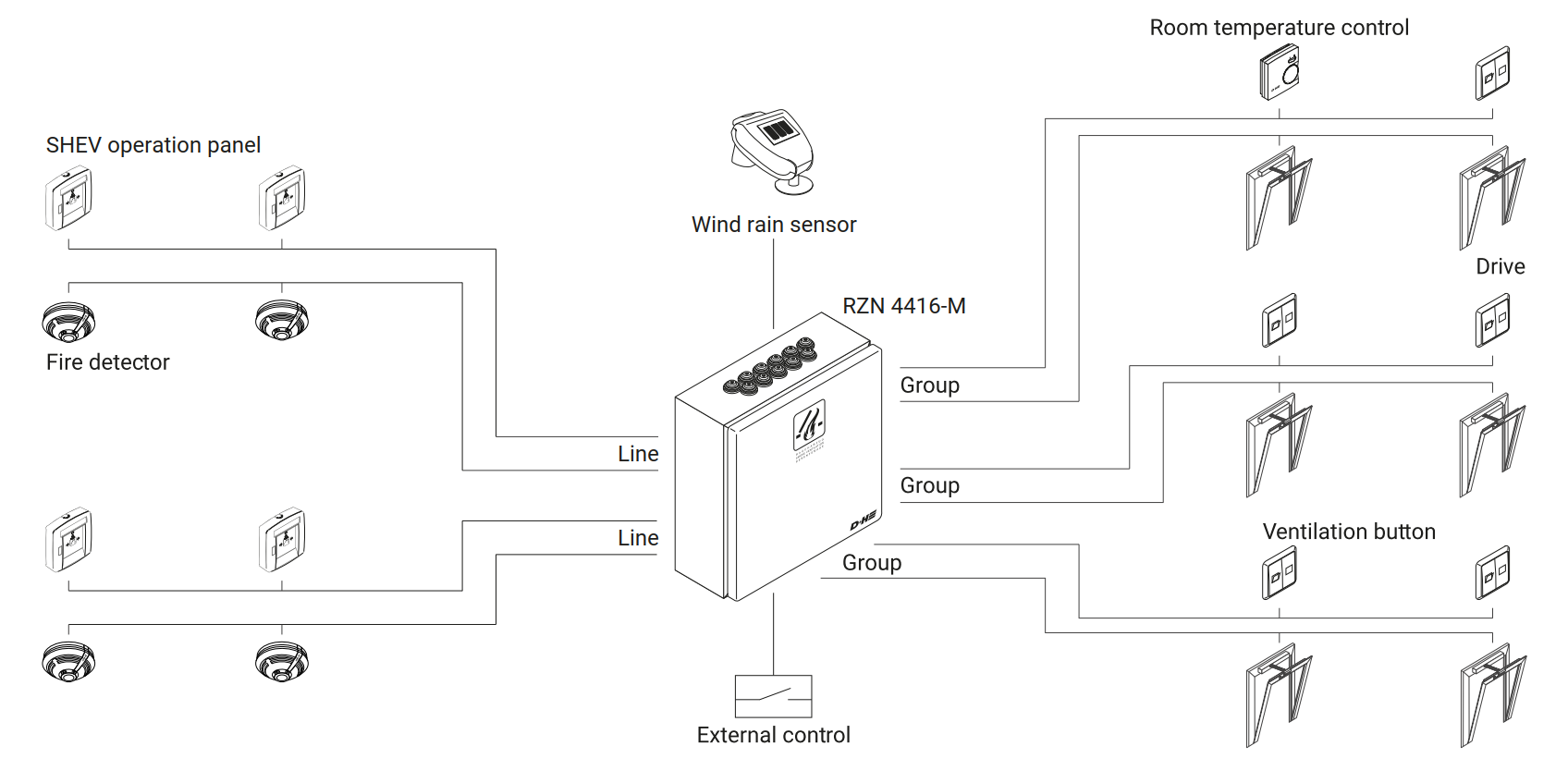

Typical system arrangement

Drive capacity and system selection

The total connected actuator load must remain within the panel’s 16 A output capacity.

Panel selection should account for:

• the selected actuator models;
• the rated and starting current of each actuator;
• the number of actuators connected to each group;
• the total connected load;
• simultaneous operating requirements;
• cable length and voltage drop;
• the three ventilation-group arrangement;
• the two monitored fire-line arrangement;
• the relationship between fire lines and operating groups;
• the required standby period; and
• the approved cause-and-effect sequence.

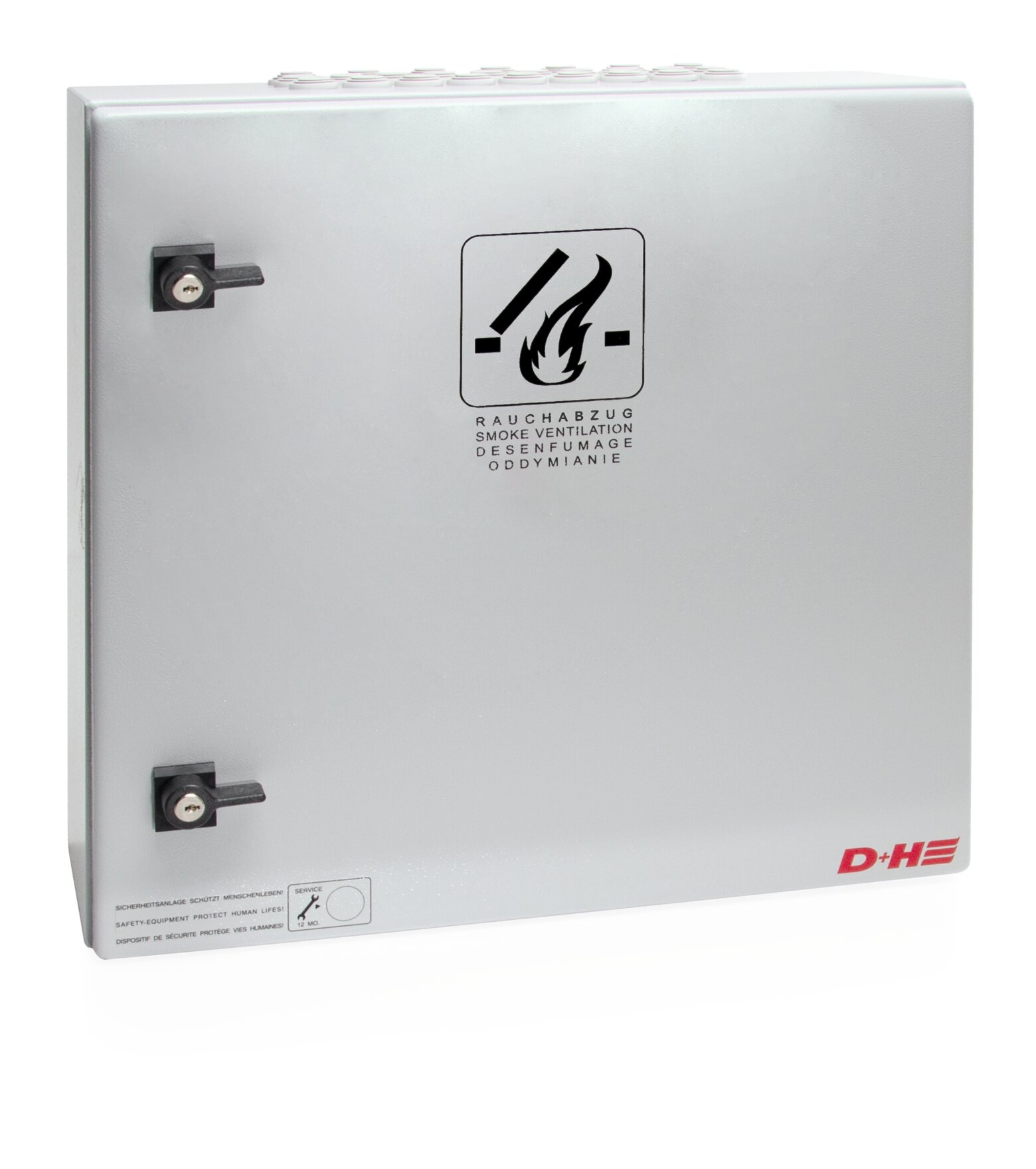

Integrated enclosure

The RZN 4416-M is supplied within its own IP54 sheet-steel enclosure with a lockable door.

The enclosure provides space for the panel equipment and standby batteries within a coordinated factory-format arrangement.

Panel location should account for:

• the 500 × 500 × 210 mm enclosure dimensions;
• the panel weight;
• wall structure and fixing requirements;
• cable-entry routes;
• installation environment;
• door-opening clearance;
• electrical working space; and
• access for testing, battery replacement and ongoing maintenance.

System coordination

The control panel forms part of a complete smoke-control and window automation system.

The project team should coordinate:

• the fire strategy and required smoke-control function;
• fire-alarm inputs and monitored fire lines;
• the allocation of openings to the three ventilation groups;
• the relationship between fire lines and ventilation groups;
• the required opening and closing sequence;
• window and actuator selection;
• weather-sensor operation;
• BMS and mechanical-services interfaces;
• standby battery calculations;
• field-cable type and routing;
• voltage drop;
• panel location and mounting;
• termination responsibilities; and
• commissioning and maintenance requirements.

Information for builders and electrical contractors

• Allow for the required 230 V AC supply to the panel.
• Allow for the integrated enclosure size, weight and mounting requirements.
• Allow cabling between the panel, actuators, switches, sensors and fire-alarm interfaces.
• Confirm any fire-rated cabling or protected cable-pathway requirements.
• Confirm fire-alarm interfaces and manual control locations before wiring.
• Confirm the required grouping and control arrangement before field cabling is completed.
• Provide suitable access for testing, commissioning and future maintenance.
• Confirm termination and commissioning responsibilities before installation.

Information for aluminium joiners

• Confirm actuator compatibility before window fabrication.
• Allow suitable fixing points for the selected actuators and brackets.
• Provide concealed cable pathways within the framing where practical.
• Confirm the required actuator colour and cable-tail length.
• Coordinate window hardware, opening geometry and actuator requirements with EBSA.
• Confirm how the openings will be divided between the three ventilation groups.

Compatible equipment

The RZN 4416-M can be used with suitable:

• D+H 24 V DC window drives;
• fire-alarm interface contacts;
• manual smoke-control switches;
• open and close ventilation switches;
• rain detectors and wind/rain sensors;
• temperature controls;
• low-level BMS interfaces;
• AdComNet interface modules;
• compatible additional modules;
• mounting brackets;
• field cabling; and
• compatible smoke and natural ventilation accessories.

Compatibility is confirmed against the selected drives, connected load, group arrangement, fire inputs and required operating sequence.

When to consider another control panel

Another panel arrangement may provide a better fit where the project requires:

• more than 16 A total drive current;
• more than three ventilation groups;
• more than two monitored fire lines;
• multiple software-defined smoke-control zones;
• cascading operation between levels;
• smoke protection link logic;
• advanced BMS or mechanical-services integration;
• ACB drive networks and diagnostic feedback;
• distributed control-panel architecture; or
• project-specific cause-and-effect logic.

Smaller RZN models suit projects with lower connected loads. CPS-P provides high-capacity packaged configurations, while CPS-M supports larger and more project-specific smoke-control systems.

Compare smoke control panels

The RZN 4416-M is one of several smoke and natural ventilation control-panel options available from EBSA.

Compare the RZN 4416-M with other RZN, CPS-B, CPS-P and CPS-M smoke control panels

Inspection, testing and maintenance

Smoke-control systems should be inspected, functionally tested and maintained in accordance with the manufacturer’s requirements, the project maintenance regime and the building’s life-safety system procedures.

EBSA provides inspection, testing, fault diagnosis, repairs and planned maintenance for new and existing D+H smoke and natural ventilation systems throughout New Zealand.

EBSA technical support

EBSA can assist with actuator selection, connected-load calculations, ventilation-group and fire-line planning, fire and ventilation interfaces, field-cabling coordination, cause-and-effect development, commissioning support and ongoing maintenance.
