Compare compact, high-capacity and project-specific smoke control panels for automated windows, louvres and roof openings, with natural ventilation functions available where required.
Smoke control panels provide monitored power, standby battery operation and fire-mode control for compatible electric window drives. Where required, the same panel can also support day-to-day natural ventilation.
The appropriate panel depends on the project fire strategy, connected actuator load, number of operating groups and fire lines, required interfaces, standby operation, field cabling and commissioning requirements.
EBSA supplies and supports D+H RZN, CPS-B, CPS-P and CPS-M smoke control panel systems for New Zealand building projects, from compact single-zone applications through to large project-specific smoke-control and façade automation systems.
Current rating alone does not determine the correct panel. Selection must also consider the required number of smoke lines, ventilation groups, fire-alarm interfaces, operating sequences, monitoring, enclosure arrangement and integration requirements.
Established smoke and natural ventilation panels for compact and medium systems using compatible 24 V DC drives.
RZN panels suit projects requiring monitored standby batteries, fire-alarm operation and normal ventilation control within a defined standard arrangement.
Compact single-line, single-group smoke and natural ventilation panels available in 2.5 A and 5 A versions.
CPS-B is suited to compact stairwell and single-zone applications requiring a modern, space-efficient panel platform.
High-capacity control panels available in 10 A, 20 A and 40 A versions for larger drive loads and industrial or roof-opening applications.
CPS-P provides a spacious installation arrangement and can reduce field-cabling complexity where several drives are connected to one panel.
Project-specific modular control panels for complex smoke control, natural ventilation, façade automation and building-services integration.
CPS-M is selected where standard panel formats do not provide the required capacity, zoning, logic, feedback or interface flexibility.
| Panel | Capacity and format | Typical positioning |
|---|---|---|
| RZN 4503-T | 24 V DC / 3 A 1 ventilation group 1 fire line |
Compact stairwell and single-zone smoke and natural ventilation systems requiring integrated local controls. |
| RZN 4404-M | 24 V DC / 4 A 2 ventilation groups 2 fire lines |
Compact smoke and natural ventilation systems requiring more than one operating group or fire line. |
| RZN 4408-K | 24 V DC / 8 A 2 ventilation groups 1 fire line |
Medium-capacity systems requiring a relatively simple smoke-control arrangement and increased actuator output. |
| RZN 4408-M | 24 V DC / 8 A 3 ventilation groups 2 fire lines |
Medium systems requiring increased drive capacity and greater grouping and fire-line flexibility. |
| RZN 4416-M | 24 V DC / 16 A Multiple groups and fire lines |
Larger standard RZN systems requiring increased total drive current and grouped operation. |
| CPS-B1-2.5 | 24 V DC / 2.5 A 1 group 1 line |
Compact single-zone smoke and natural ventilation applications, including stairwell opening systems. |
| CPS-B1-5 | 24 V DC / 5 A 1 group 1 line |
Single-zone applications requiring greater drive capacity within a compact modern panel platform. |
| CPS-P1-010 | 24 V DC / 10 A High-capacity standard panel |
Larger groups of drives, roof openings and industrial applications requiring a practical high-current panel. |
| CPS-P1-020 | 24 V DC / 20 A High-capacity standard panel |
Higher-load smoke and natural ventilation systems requiring increased drive capacity and simplified cabling. |
| CPS-P1-040 | 24 V DC / 40 A High-capacity standard panel |
Large drive loads, industrial buildings and roof-opening systems where a high-output standard panel is suitable. |
| CPS-M | Project-specific modular output Configurable groups, zones, logic and interfaces |
Complex, high-capacity or highly integrated smoke-control and façade automation systems. |
Use this page as a selection guide. Individual product pages provide model-specific information, downloads and enquiry pathways where available.
Final panel selection must be checked against the project fire strategy, actuator load, required fire lines and ventilation groups, battery calculations, interfaces, field cabling and cause-and-effect requirements.
The panel receives the required fire-alarm or manual smoke-control input and operates the connected openings according to the approved cause-and-effect sequence.
Integrated standby batteries maintain the control system during a mains power failure and allow the panel to command the connected openings to their required position.
Where required, the same panel can support day-to-day ventilation using wall switches, weather sensors, temperature controls, BMS signals or other approved inputs.
D+H RZN panels are established smoke and natural ventilation control panels for projects requiring standardised fire-mode operation, monitored standby power and normal ventilation functions.
The RZN range includes compact and medium-capacity options with different combinations of total drive current, ventilation groups and fire lines. They remain suitable where the required system arrangement fits the available standard configuration.
The D+H CPS-B series is a compact smoke and natural ventilation control-panel platform for single-line, single-group systems.
CPS-B panels are available with 2.5 A or 5 A nominal output and are suited to compact applications such as stairwell smoke ventilation, single-zone façade openings and smaller smoke-relief systems.
CPS-B should be selected only where one group and one smoke-control line suit the project requirements. The connected actuator load, battery capacity, enclosure and permitted system components must be confirmed for the final design.

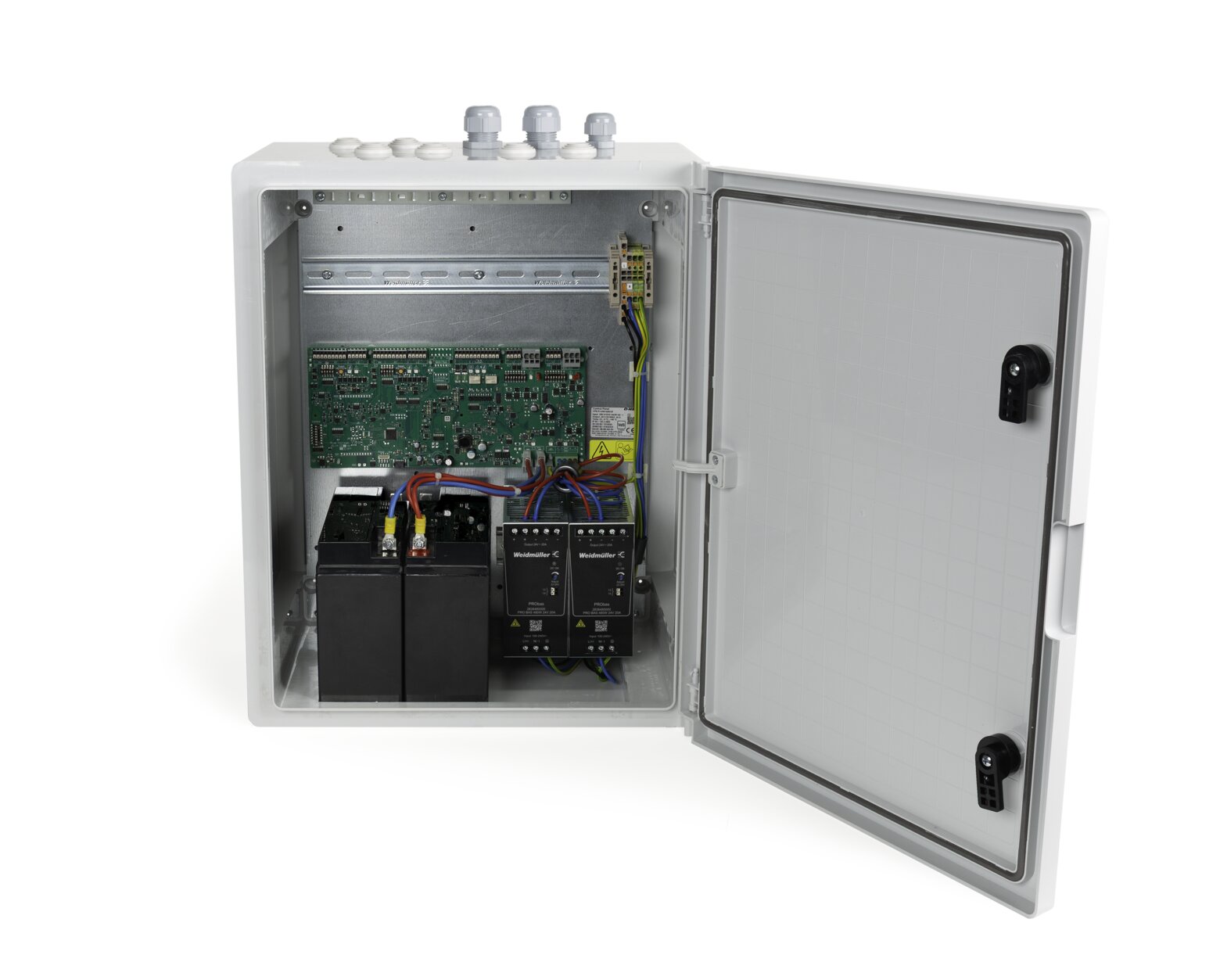

The D+H CPS-P series is designed for high-current smoke and natural ventilation applications where a standard panel with substantial actuator capacity is preferred over a fully project-specific modular system.
The range includes 10 A, 20 A and 40 A versions. CPS-P is particularly relevant to industrial buildings, warehouses, roof-opening systems, skylight domes and projects where several drives can be connected to a central high-capacity panel.
24 V DC / 10 A output for higher-load smoke and natural ventilation systems.
24 V DC / 20 A output for larger drive groups and increased system capacity.
24 V DC / 40 A output for substantial actuator loads and demanding high-current applications.
The CPS-P enclosure and internal rail arrangement provide space for practical cabling and permitted functional additions. Final selection must confirm the required panel variant, group and line arrangement, connected load, battery capacity and interface requirements.
CPS-M is used where the smoke-control or façade automation system requires a project-specific panel rather than a standard fixed configuration.
The modular platform can be configured to suit the required actuator capacity, smoke-control zones, ventilation groups, monitored inputs, status outputs, local controls, building-services interfaces and cause-and-effect logic.
Smoke and natural ventilation control panels remain powered from their standby batteries when the normal 230 V AC mains supply fails.
Where the selected operating strategy requires automatic close on loss of mains power, the panel uses its standby supply to command the connected openings to close. Fire-mode operation retains priority where required by the approved cause-and-effect sequence.
The required fail-safe position, standby period, actuator load, cable arrangement and battery capacity must be confirmed as part of the complete system design.
The smoke-control panel is selected and configured as part of the complete building system, together with the window drives, automated openings, field cabling, interfaces, standby power and approved cause-and-effect sequence.
Coordinating these elements with the project fire strategy and the relevant fire, mechanical, electrical and façade design requirements provides a clear basis for installation, testing and commissioning.
D+H smoke ventilation control-panel platforms are available with certification to applicable smoke-control power-supply and control-equipment standards. The exact certification and permitted configuration must be checked for the selected panel, enclosure and system components.
Understand automated openings, fire-mode logic, make-up air, pressure relief, interfaces and commissioning requirements.
Compare natural ventilation, smoke-control and project-specific panel families across the wider EBSA range.
Review compatible chain drives, rack drives and other actuator options for automated façade openings.
A smoke control panel includes standby batteries and fire-mode inputs for operating compatible windows, louvres or roof openings during a fire event. A natural ventilation-only panel is intended for day-to-day ventilation and generally does not remain operational when mains power fails.
Yes. RZN, CPS-B, CPS-P and CPS-M panels can support normal natural ventilation while retaining fire-mode priority. The exact functions depend on the selected panel, connected equipment and approved cause-and-effect sequence.
The panel remains powered from its standby batteries. Where the agreed operating strategy requires automatic close on loss of mains power, it commands the connected openings to close while retaining the required fire-mode priority.
Selection depends on actuator load, number of smoke-control lines and ventilation groups, required interfaces, enclosure arrangement, standby capacity and the complexity of the operating logic. RZN and CPS-B suit comparatively defined applications, CPS-P provides higher-capacity packaged configurations, and CPS-M is used for larger or project-specific systems requiring flexible zoning, interfaces and control logic.
Yes. A system can be designed with multiple fire inputs and multiple fire zones. This is particularly relevant to CPS-M, where project-specific hardware and software can be configured around the building fire strategy and required cause-and-effect sequence.
CPS-M is not limited to a simple one-input, one-zone arrangement. It can support a large number of software-defined fire zones, with the practical project capacity determined by the selected panel hardware, network architecture, input and output requirements, and the approved system design.

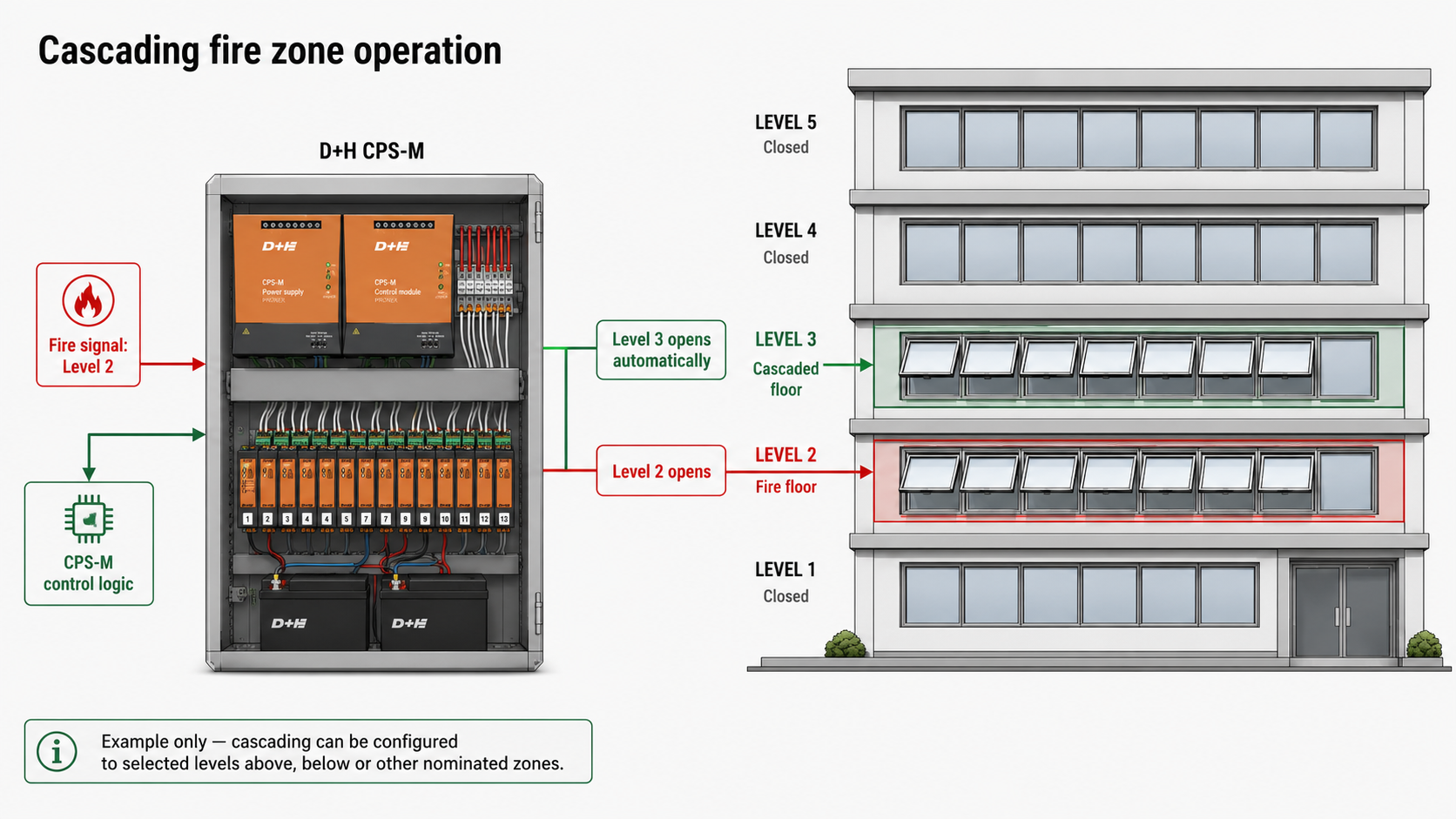

Yes. CPS-M can be programmed so that a fire signal on one level also triggers selected openings on another level. For example, a fire signal on Level 2 could place the Level 2 openings into fire mode and also command selected Level 3 openings to operate. This is commonly described as a cascading effect. The additional levels are operated because of the originating fire signal, even though they have not received their own local fire-zone signal.

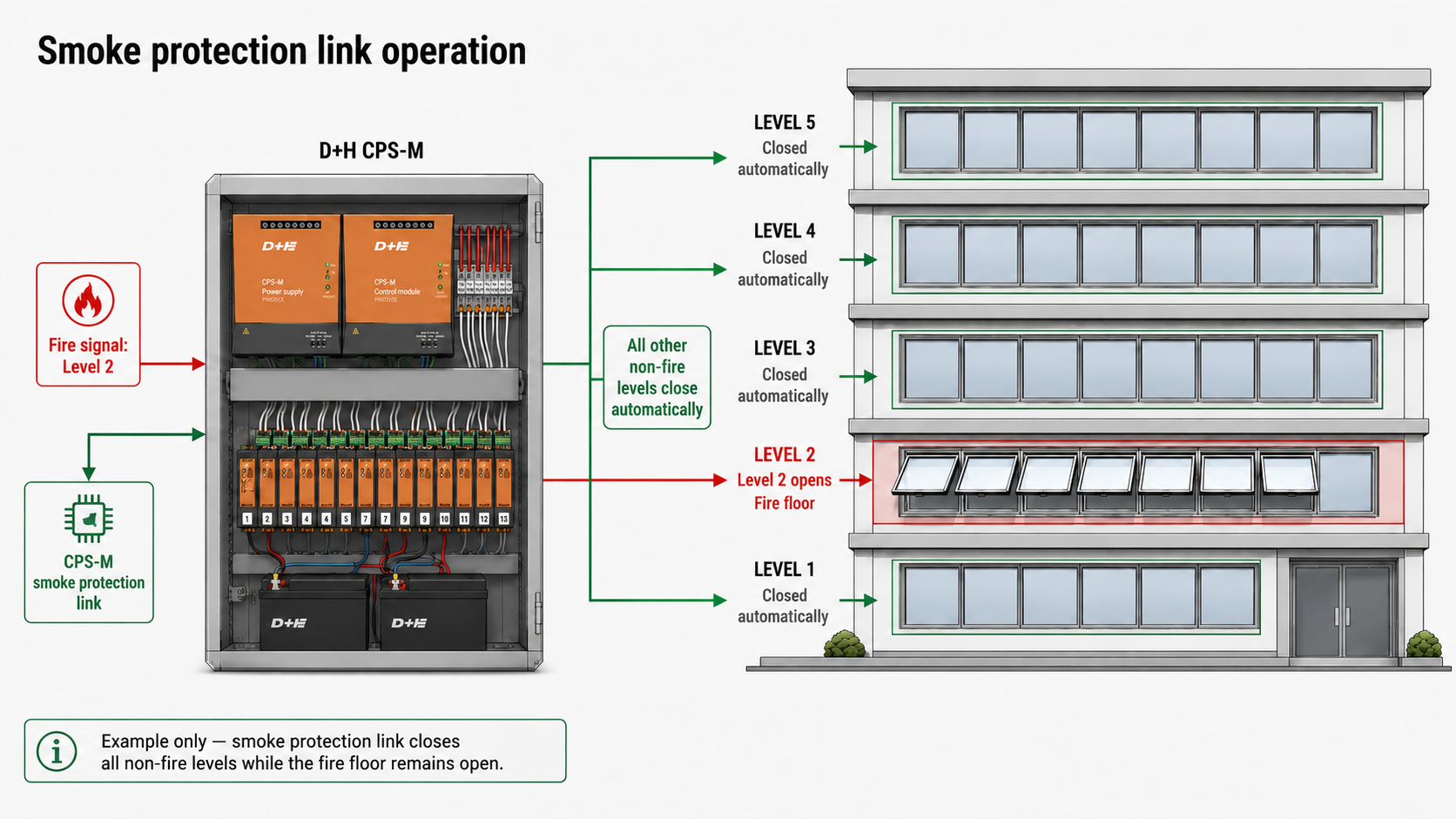

A smoke protection link is a CPS-M control function used where windows may be open for natural ventilation when a fire signal occurs. It can command open windows within the nominated fire zones to close, while allowing the openings associated with an active fire zone to follow their required fire-mode operation.
Yes. A dedicated fire input can be assigned to a software fire zone with no windows directly connected to it. That input can trigger the smoke protection link and command the nominated natural-ventilation windows across the project to close. Separate fire-zone inputs can then be used to open the required smoke-control openings.
Yes. Smoke control panels can receive fire-alarm inputs and provide status or fault outputs. BMS and mechanical-services interfaces can also be incorporated where required. Fire-mode commands must retain priority over normal ventilation and BMS operation.
The panel is selected and configured together with the actuators, automated openings, field cabling, interfaces, standby power and approved cause-and-effect sequence. EBSA works with the project team to coordinate these elements with the fire strategy and relevant design requirements.
The required operation must be established through the project fire strategy and coordinated with the fire engineer, fire-alarm contractor, mechanical and electrical designers, façade team and other relevant parties. EBSA can develop the control-panel architecture and programming around the agreed requirements.
Yes. EBSA can assist with panel configuration, input and output testing, actuator operation, fire-alarm interfaces, natural ventilation controls, cause-and-effect testing and commissioning coordination within the agreed project scope.
EBSA can assist with panel selection, actuator-load calculations, system architecture, fire and ventilation interfaces, control philosophy, field-cabling coordination, panel design and commissioning support.
